Product Overview

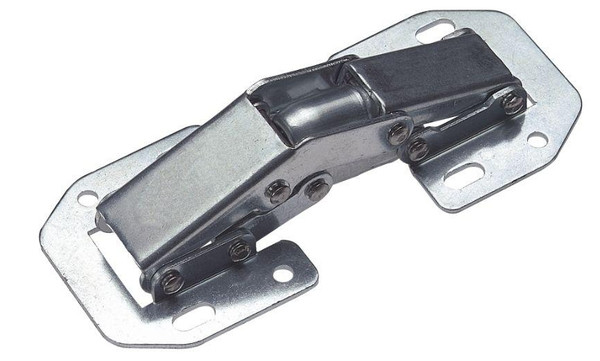

Pair (2) Invisible Spring Hinges for Inset, Full or Partial overlay doors.
Euro-Hinge performance from a surface mount hinge.
90 degrees opening.
Use for doors up to 3/4" thick. Material .02 thickness.
This hinge is for use on cabinets without face-frames.
If you have face-frames you must use a 1 3/4" block attached at 90 degrees to face-frame to mount this hinge.
- Overall Dimensions: 4 1/4" x 1 3/4" x 1" (108 mm x v 44.44 mm x 25.4 mm)
- Base Dimensions: 1 3/4" x 1 5/8" x 7/8" (44.44 mm x 41 mm x 22.23 mm)
- Base Centers: 1 1/4" (32 mm)
- Finish: Unichrome (Nickel Plated)
L-H01068C-UC-C5
Priced by Pair Comes with screws and installation instructions. Click the following link to see H01068V installation instructions.
Liberty Hardware Product
Please match your hinge against the drill pattern on the template before drilling any holes.
