Product Overview

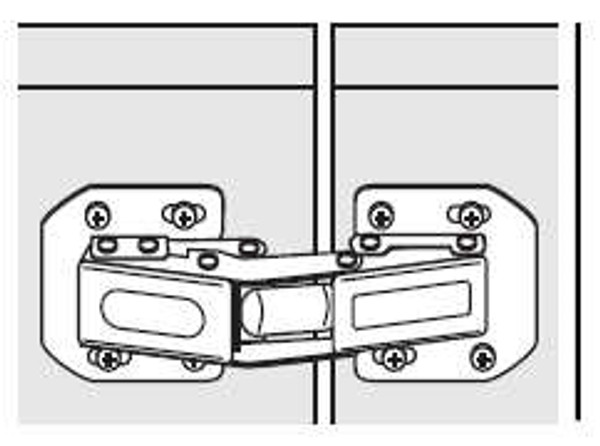

Pair (2) Invisible Spring Hinges for Inset, Full or Partial overlay doors.
Euro-Hinge performance from a surface mount hinge.
90 degrees opening.
Use for doors up to 3/4" thick. Material .02 thickness.
This hinge is for use on cabinets without face-frames.
If you have face-frames you must use a 1 3/4" block attached at 90 degrees to face-frame to mount this hinge.
Euro-Hinge performance from a surface mount hinge.
90 degrees opening.
Use for doors up to 3/4" thick. Material .02 thickness.
This hinge is for use on cabinets without face-frames.
If you have face-frames you must use a 1 3/4" block attached at 90 degrees to face-frame to mount this hinge.
- Overall Dimensions: 4 1/4" x 1 3/4" x 1" (108 mm x v 44.44 mm x 25.4 mm)
- Base Dimensions: 1 3/4" x 1 5/8" x 7/8" (44.44 mm x 41 mm x 22.23 mm)
- Base Centers: 1 1/4" (32 mm)
- Finish: Unichrome (Nickel Plated)
