Product Overview
Absolutely the easiest way to put a slide-out work surface under any bench, computer desk or table

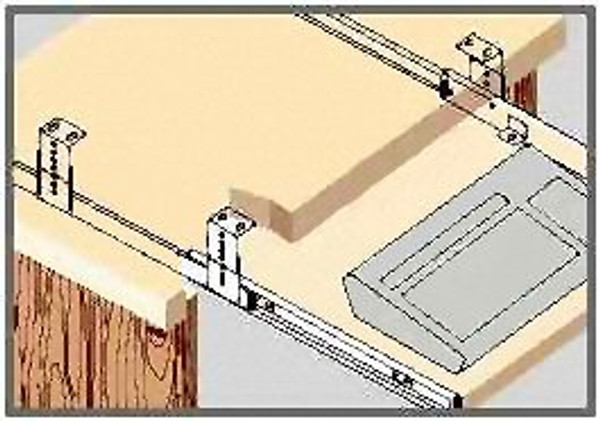

Just drop a shallow drawer or flat board onto the four built-in tabs and screw it down.
- 14 in. length
- Lock-in and lock-out capability
- 50 lb. weight capacity
- 2-1/2 to 3-3/4 in. height adjustment to fit a variety of keyboards
- 1-1/6 in. Inboard Position Side Clearance
- 1-17/32 in. outboard position side clearance
- Includes: 4 Reversible Mounting Brackets and 4 Screws
- Wood screws are not included
- Ball bearing Design
- Black finish
Liberty
Technical Specifications
Mounting: Bottom mount on shelf tabs of outer members, inner members mount to the underside of desk or table by mounting brackets.
Features: Hold-out design holds keyboard in open position, prevents bounce back, shelf tabs design for easy drop-mounting. 4-different adjustable heights, lowest setting approximately 3-3/4 inch shortest setting approximately 2-3/8 inch, two other setting adjustments in between
Loading Rate: 20 pound class
Finish: Black zinc ( BL )
Size: 14 inch (350 mm)
Slide length 352.6 mm
Travel 239.0 mm
Mounting: Bottom mount on shelf tabs of outer members, inner members mount to the underside of desk or table by mounting brackets.
Features: Hold-out design holds keyboard in open position, prevents bounce back, shelf tabs design for easy drop-mounting. 4-different adjustable heights, lowest setting approximately 3-3/4 inch shortest setting approximately 2-3/8 inch, two other setting adjustments in between
Loading Rate: 20 pound class
Finish: Black zinc ( BL )
Size: 14 inch (350 mm)
Slide length 352.6 mm
Travel 239.0 mm
