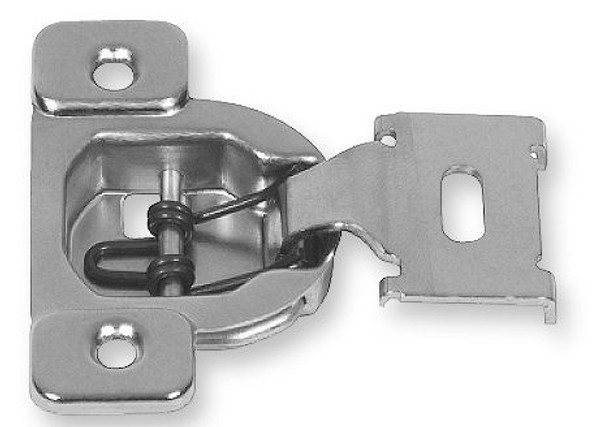

Compact One-Piece 7/16" Overlay 2-Way Adjust Hinge LQ-H05105-NP-A

Euro 7/16" Overlay Face Frame Hinge - One piece design makes mounting a snap. This is the economical standard euro used by commercial cabinetmakers. 1/2" adjustment slot on face frame side to allow for vertical adjustment of door.

Your are purchasing one hinge

• TECHNICAL SPECIFICATIONS
• Depth of metal cup 11.3mm

• Cup diameter 35mm

• Cup centers 1-3/4"

• Opening 110 degrees with (k) max 2.5mm

• 7/16" overlay

• Able to drill door (k) from 2.5mm

• Self closing

• Thickness of door(t)from 16 to 19mm(11/16" to 3/4")

• Finish: Nickel Plated

• COMES WITH 2 SCREWS INSIDE OF DOWELS IN CUP


SEE TECHNICAL INFORMATION FOR CORRECT SCREWS AND INSTALLATION HELP.
