Product Overview

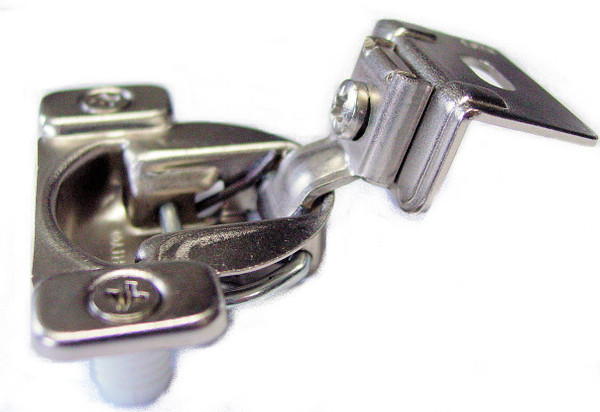

Easy to install single one piece face frame Euro hinge for full overlay doors partial wrap face frame plate.
Functions the same as H70237C-NP-C Liberty Retail Product.
Nickel plated
4-Way Adjustable -- door height up/down by 5+ mm and overlay more or less by 2.5 mm
Liberty Hardware
Installation hinge picture may not be exact match, but function and installed appearance is the same.
Functions the same as H70237C-NP-C Liberty Retail Product.
- Builder's European style compact one piece hinge. Mounting plate and hinge are one easy to install unit.
- Opening angle is 105 degrees.
- Self closing.
- Designed for face frame cabinets with overlay doors 1-5/16" overlay.
- Hinge is for cabinets with a 3/4" thick face frame.
- Cup 35mm. Cup depth 7/16". Bore distance (k) 1/8".
- Comes with screws in the press-in dowels. Dowels are used in MDF or particle board. If mounting in solid wood, remove the dowels and use only the wood screws.
- Mounting screws not included for the face frame part. Each hinge requires one #6-7 screw to attach to the face frame.
Your are purchasing one hinge with dowels.
Nickel plated
4-Way Adjustable -- door height up/down by 5+ mm and overlay more or less by 2.5 mm
Liberty Hardware
Installation hinge picture may not be exact match, but function and installed appearance is the same.
